TORMACH microARC 4th axis ADAPTER & 3R CNC Self-centering Vise 8-55mm & HARDWARE
TORMACH microARC 4th axis ADAPTER & 3R CNC Self-centering Vise 8-55mm & HARDWARE
Regular price
$124.99 USD
Regular price
Sale price
$124.99 USD
Unit price
per
Couldn't load pickup availability

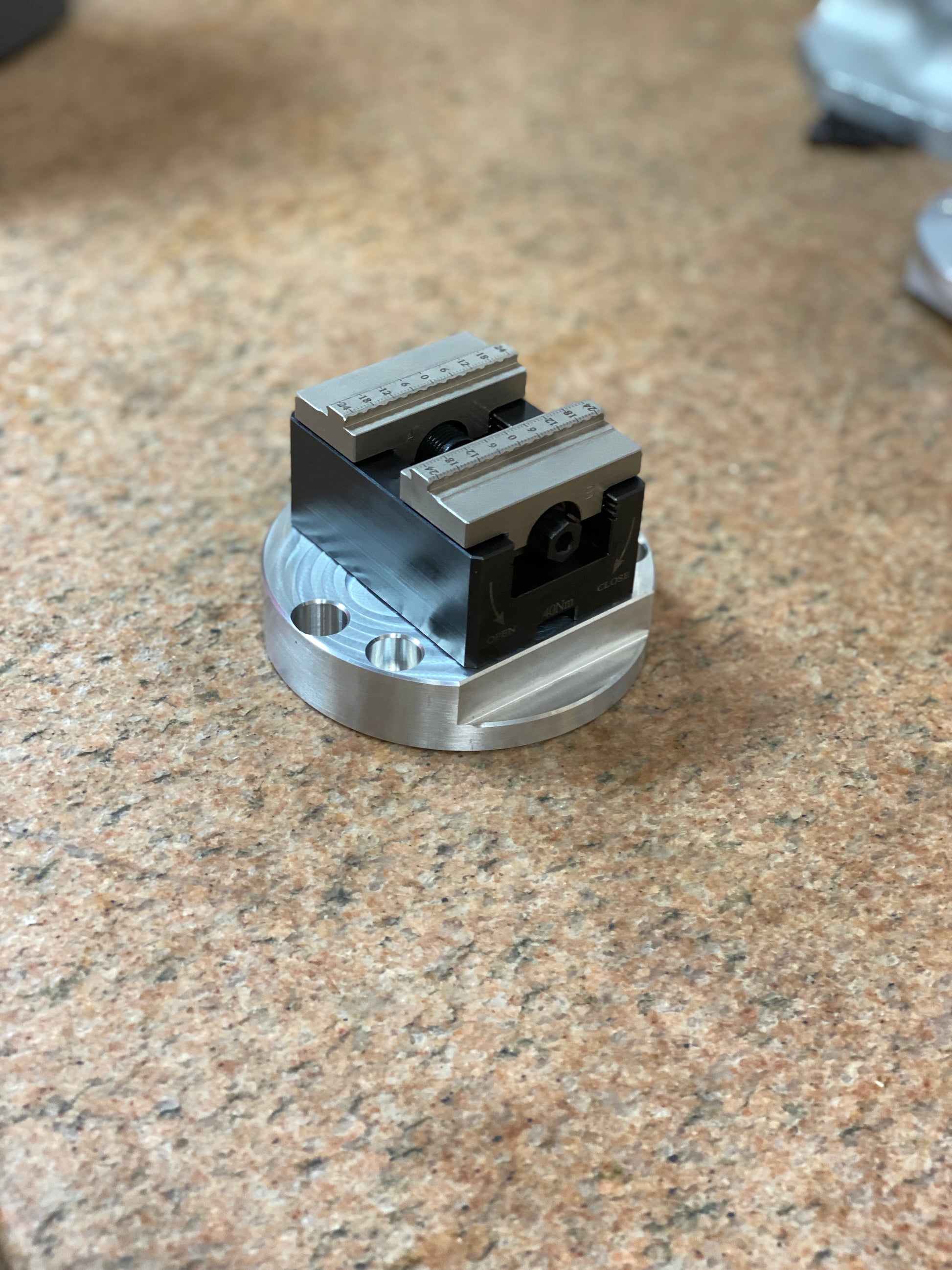

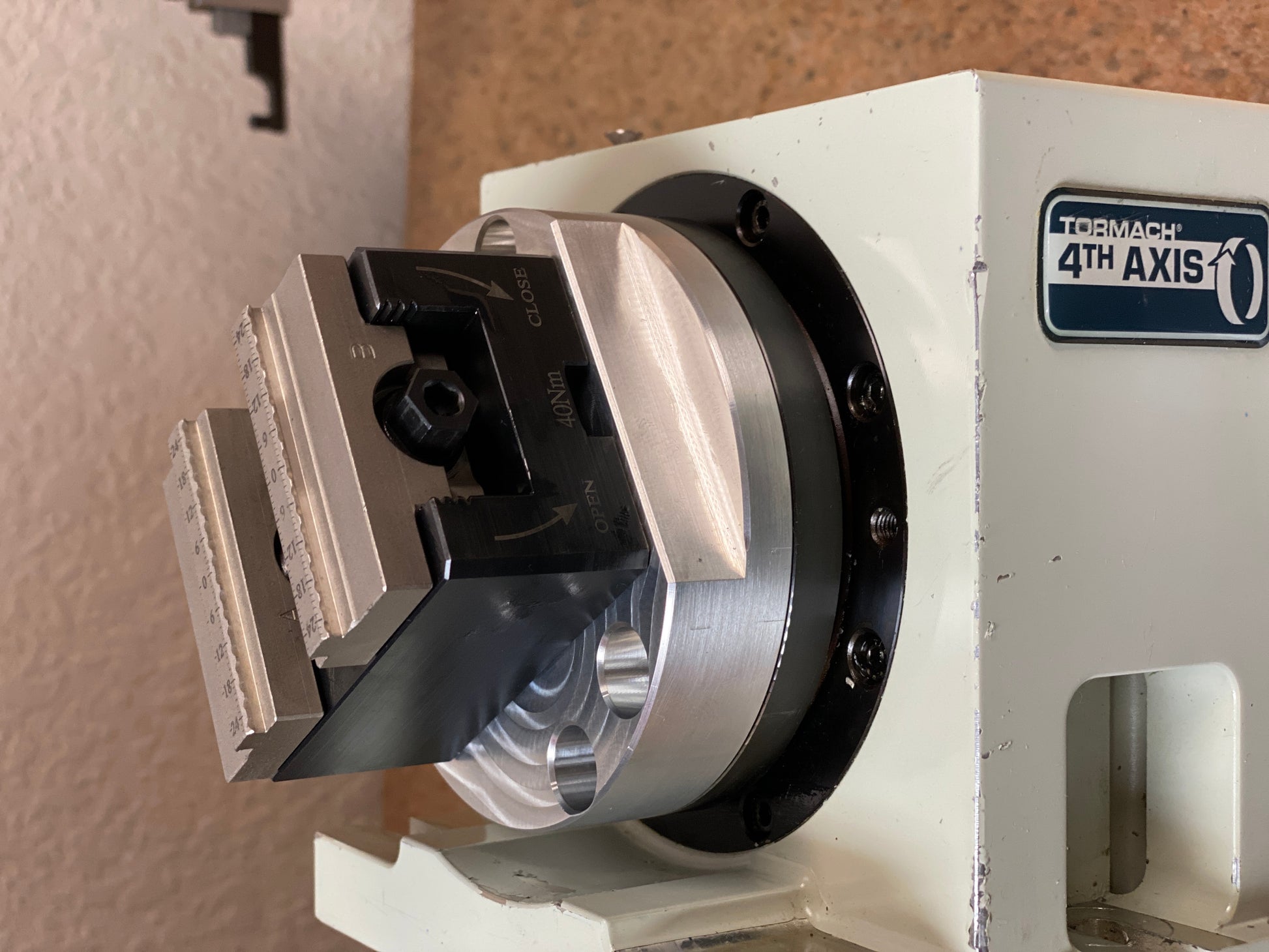

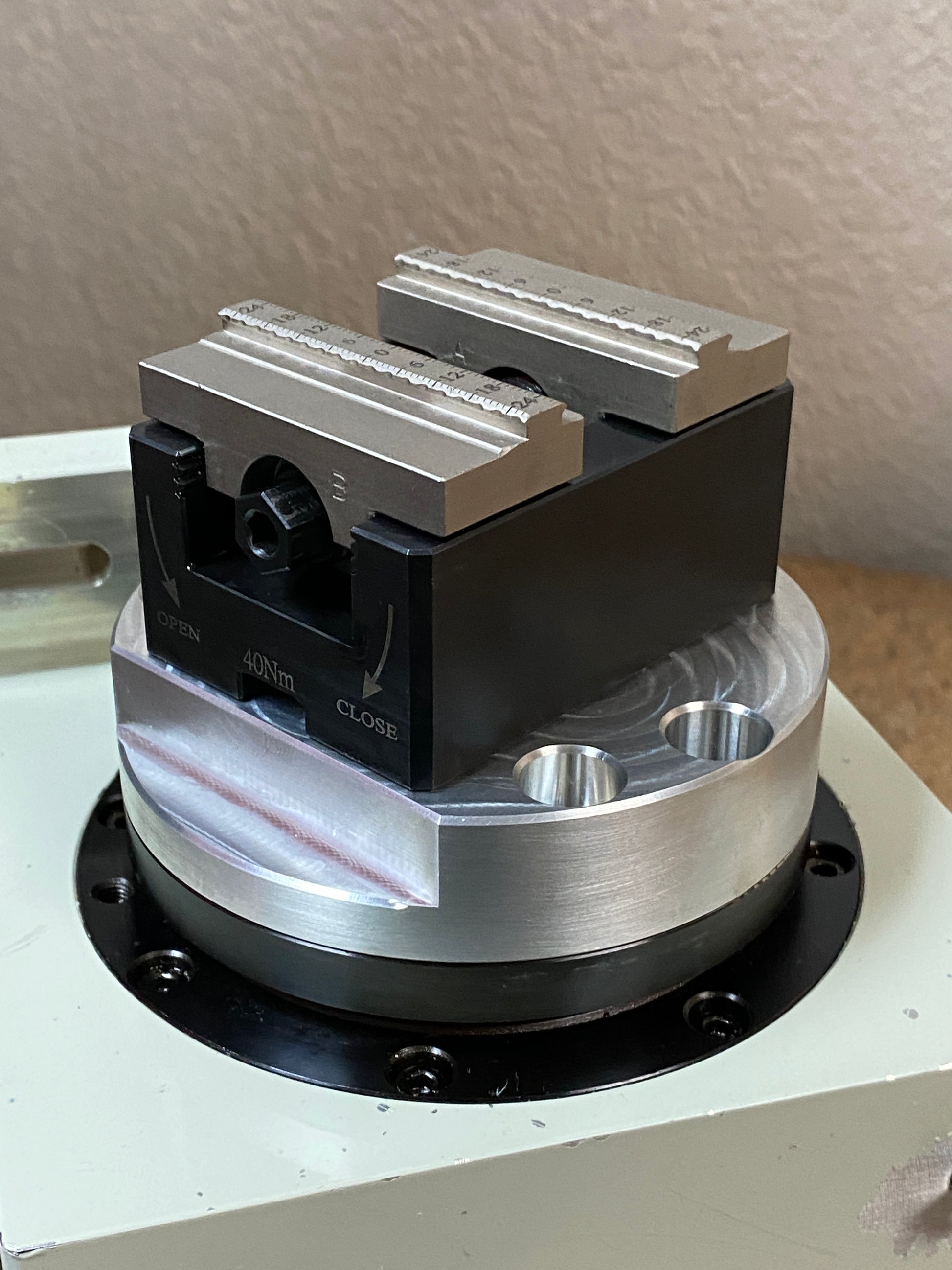

This is a complete kit to add a small self centering vise to you Torch Micro arc 4th axis.
View full details

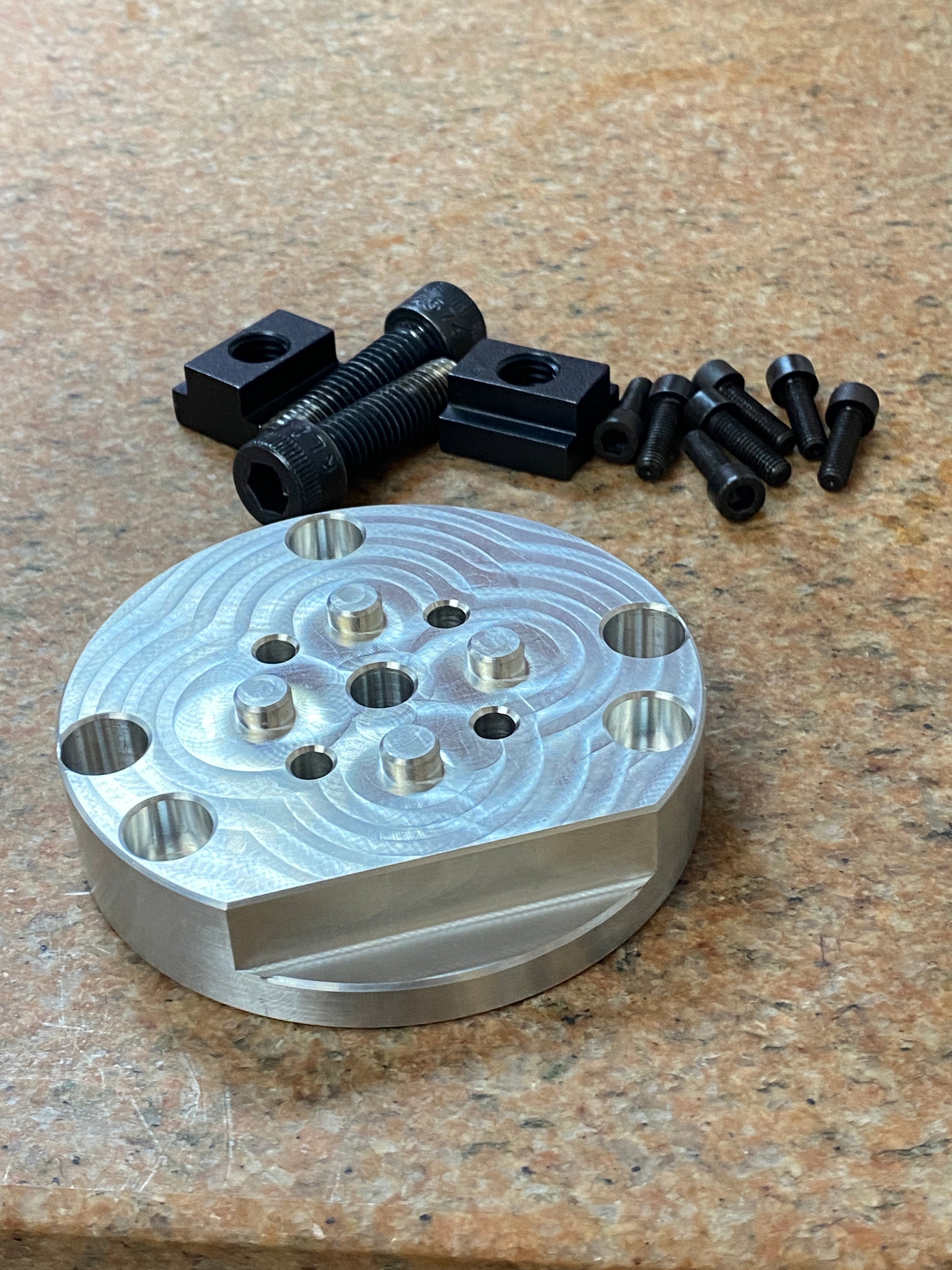

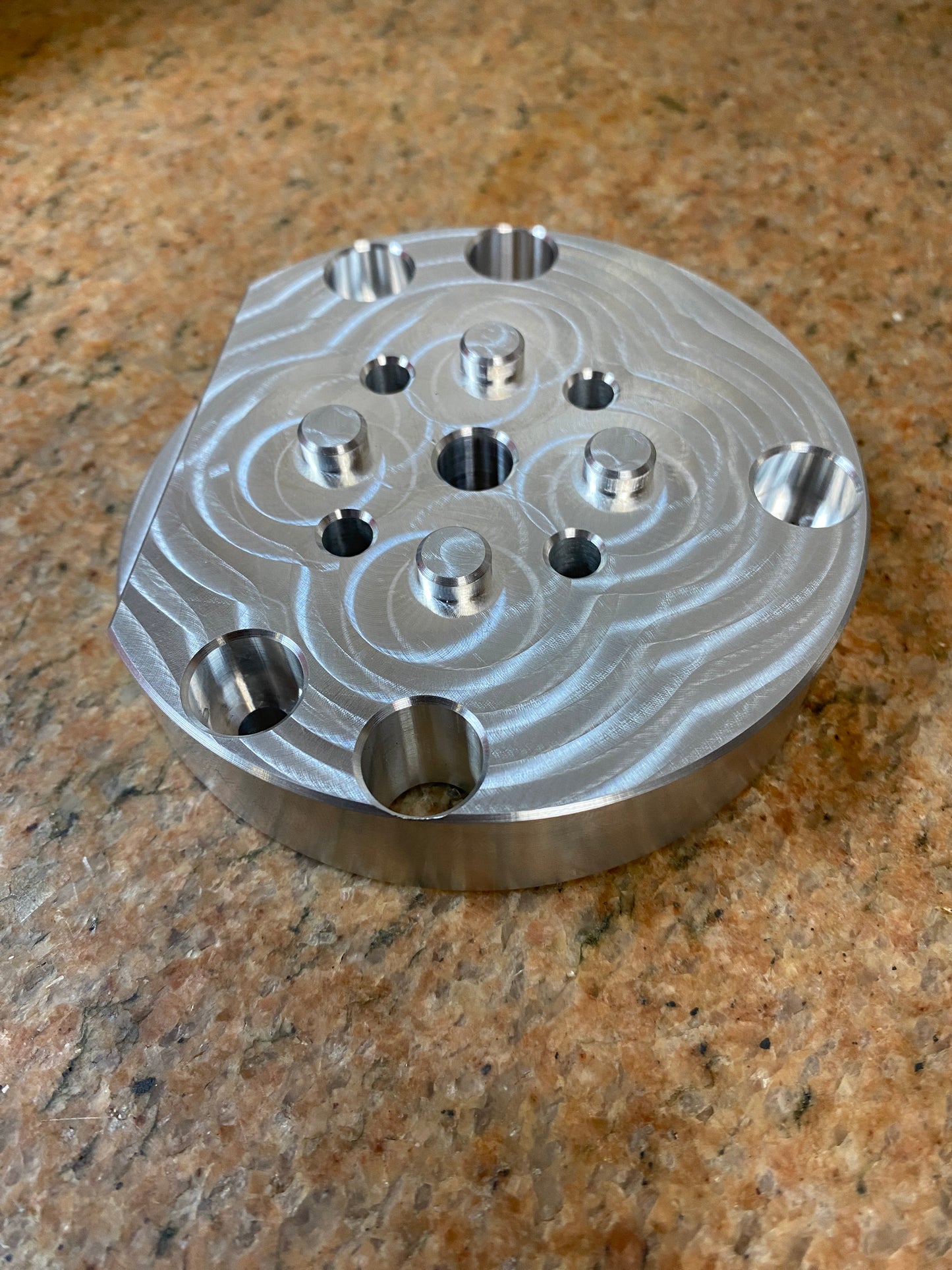

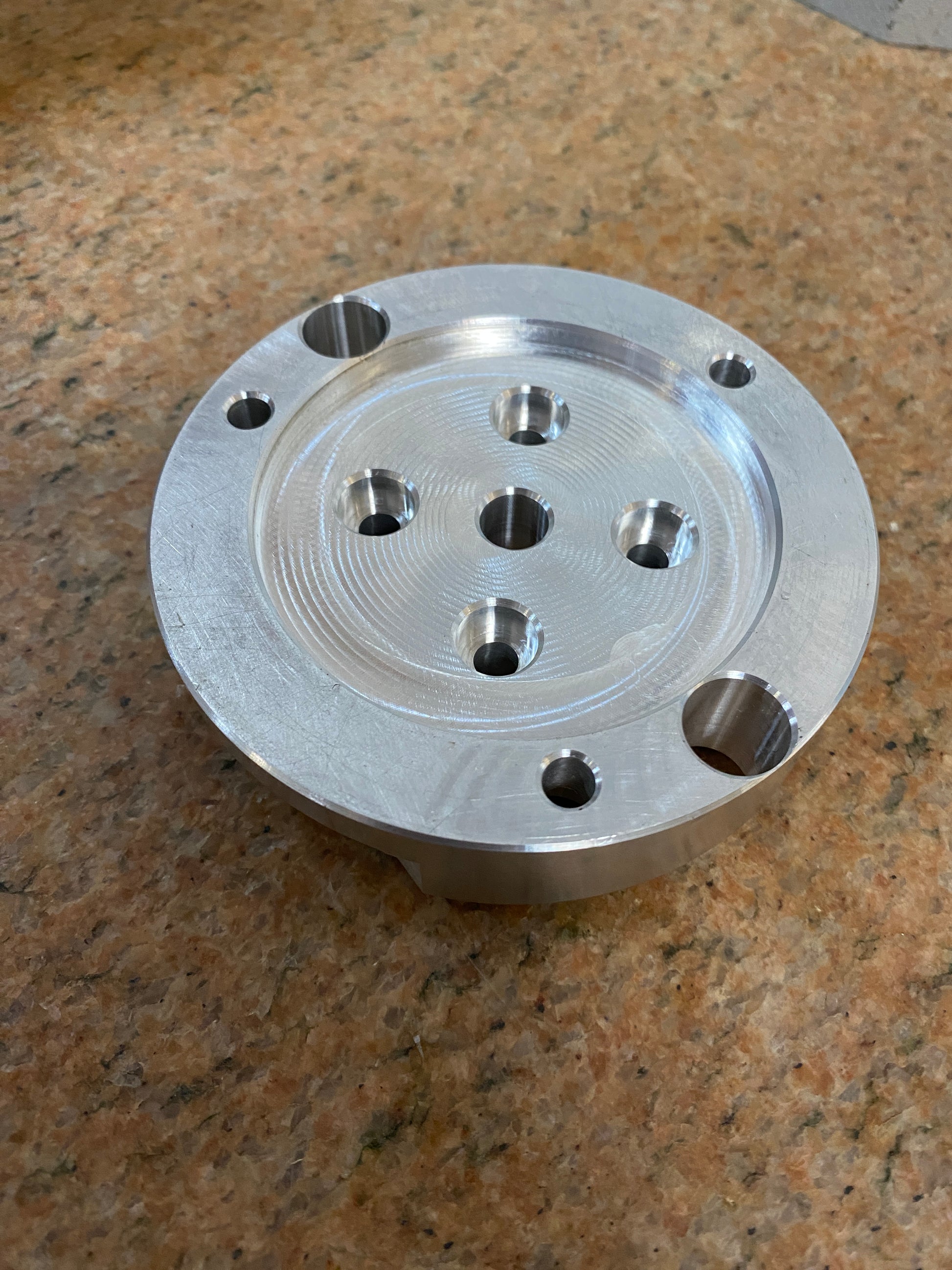

The adapter plate is made from 6061 Aluminum, machined to less than .0005" parallelism from top to bottom of the plate.

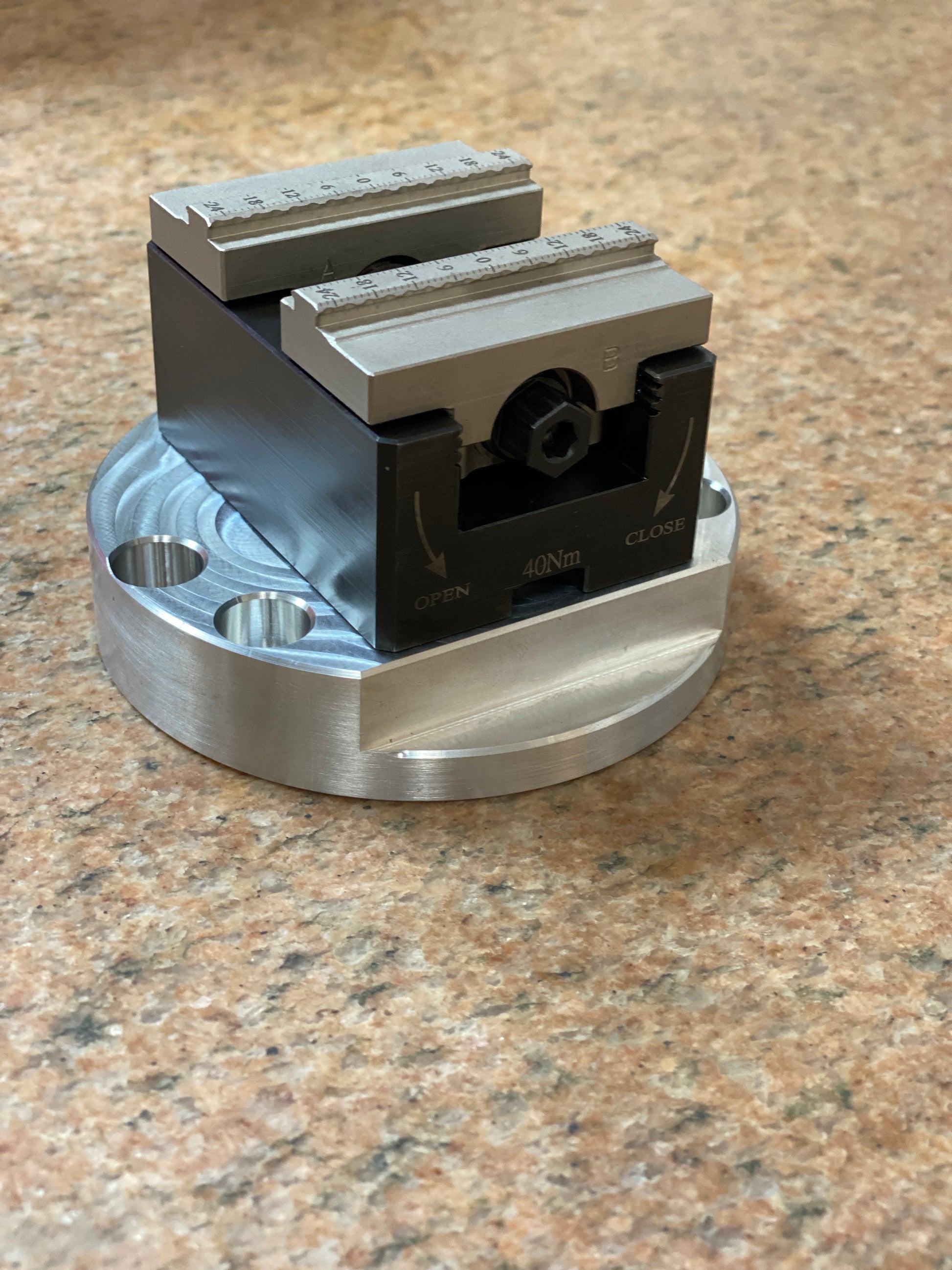

The vise mounts on 4 locateing pins and is held in with 4 m6 screws.
There is an option to buy the adapter plate by itself if you already have the vise.

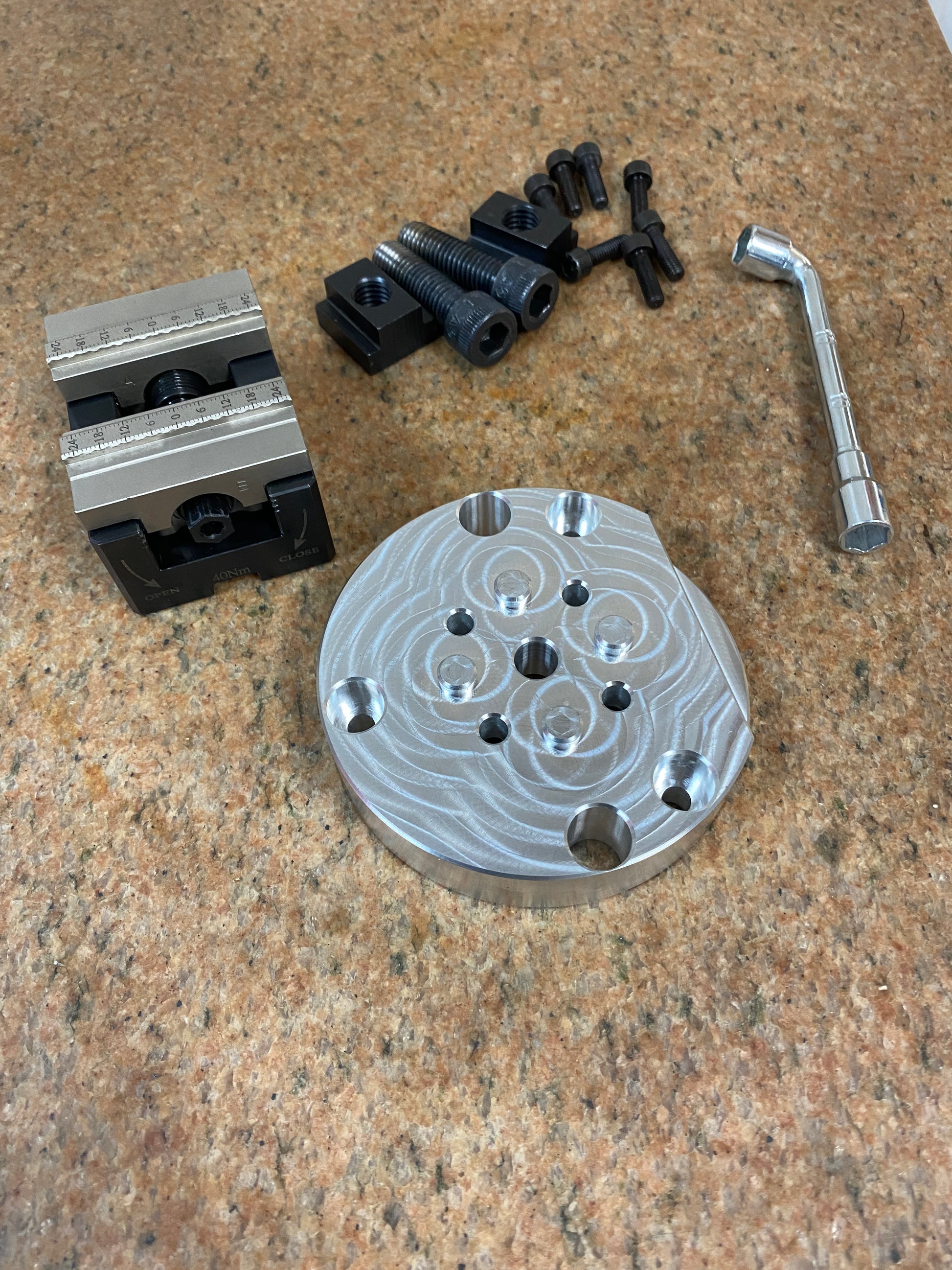

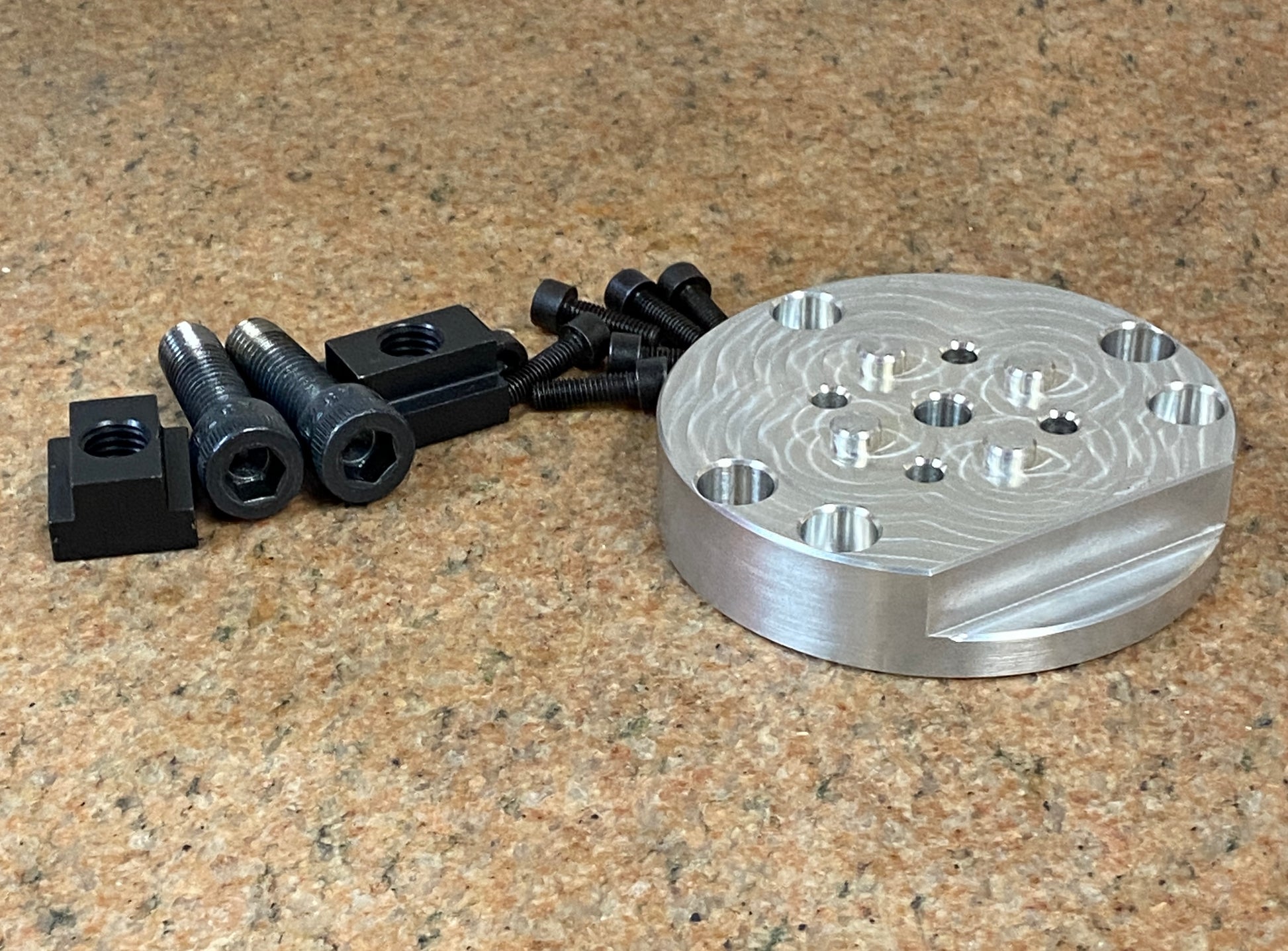

This kit includes:
(1) Adapter plate (USA MADE)

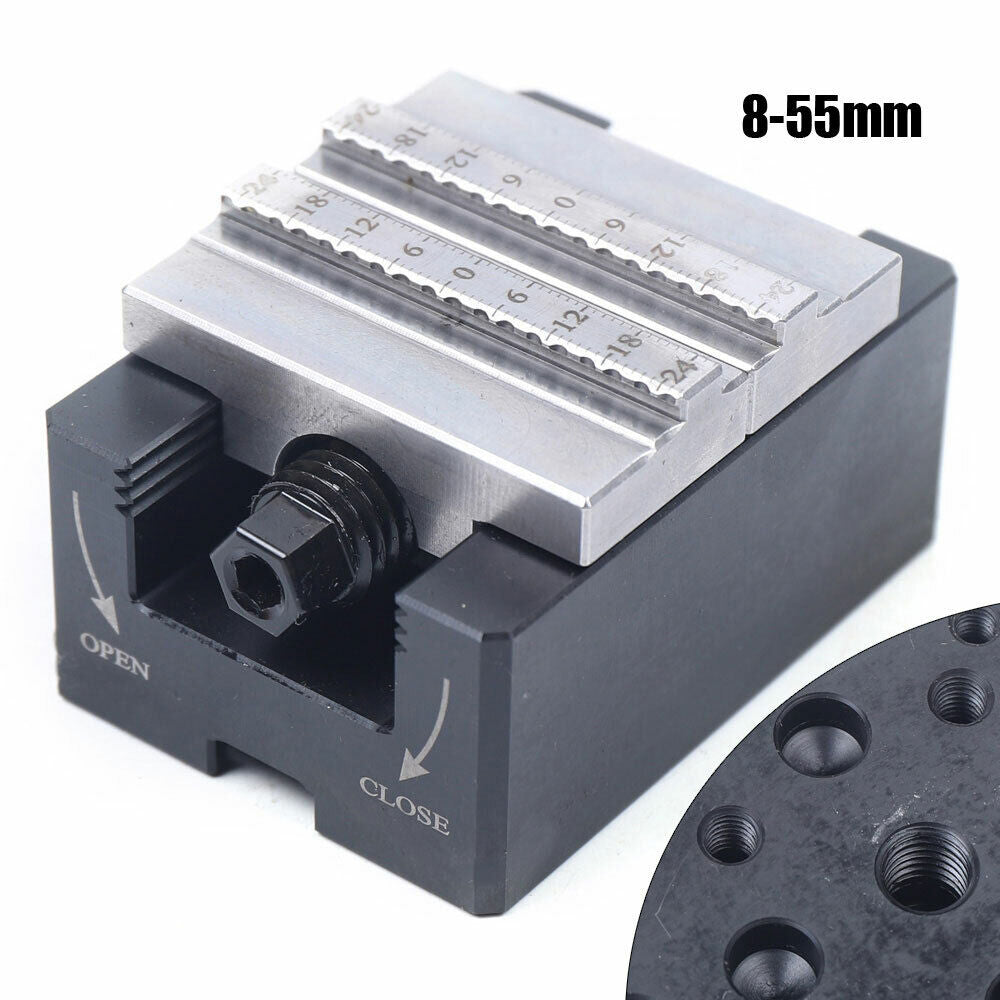

(1) self centering vise (generic vise NOT USA MADE)

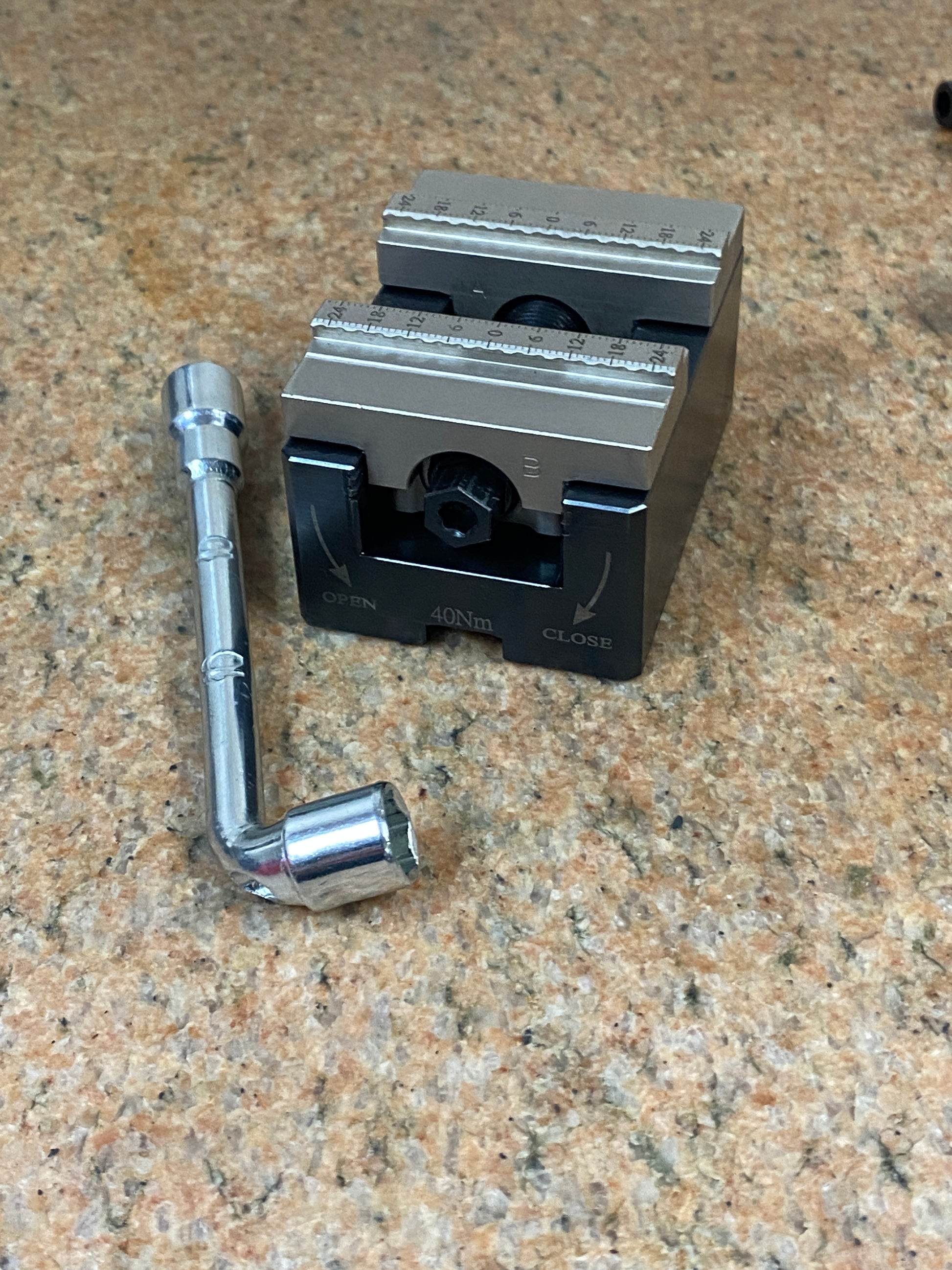

(1) wrench to open the vise, (5mm hex key could be used instead)
(2) 5/8" 1/2-13 T-Nuts

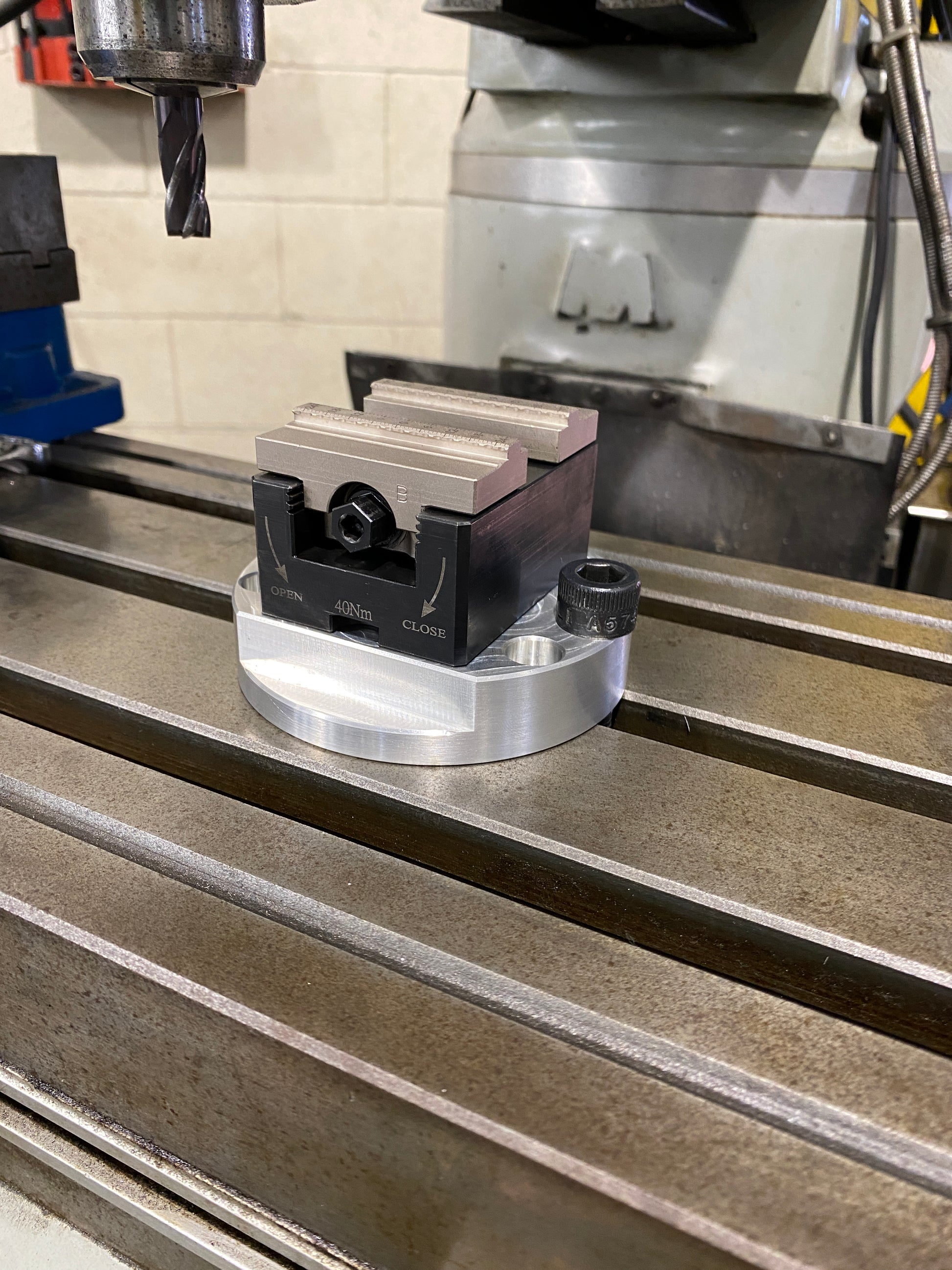

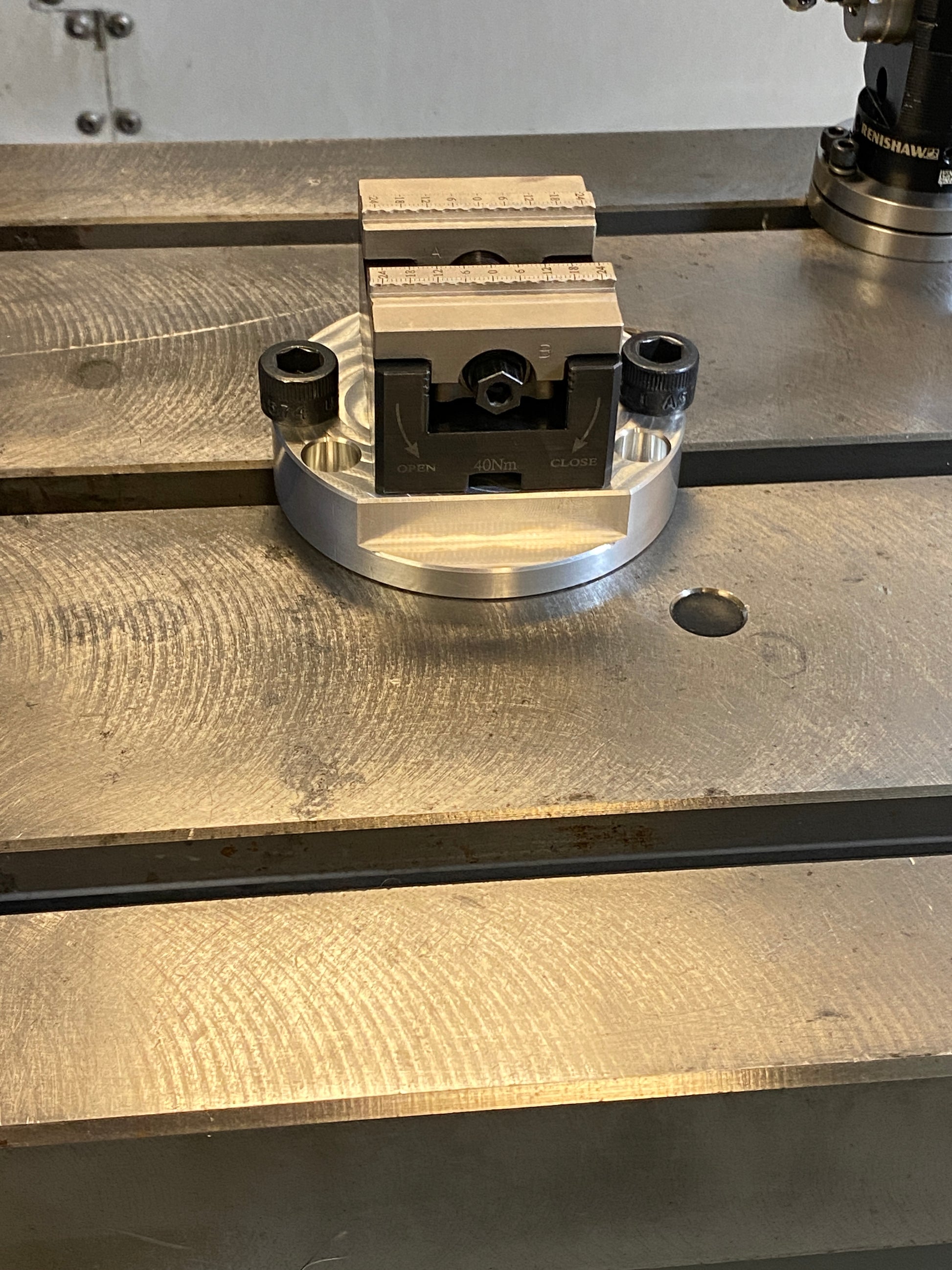

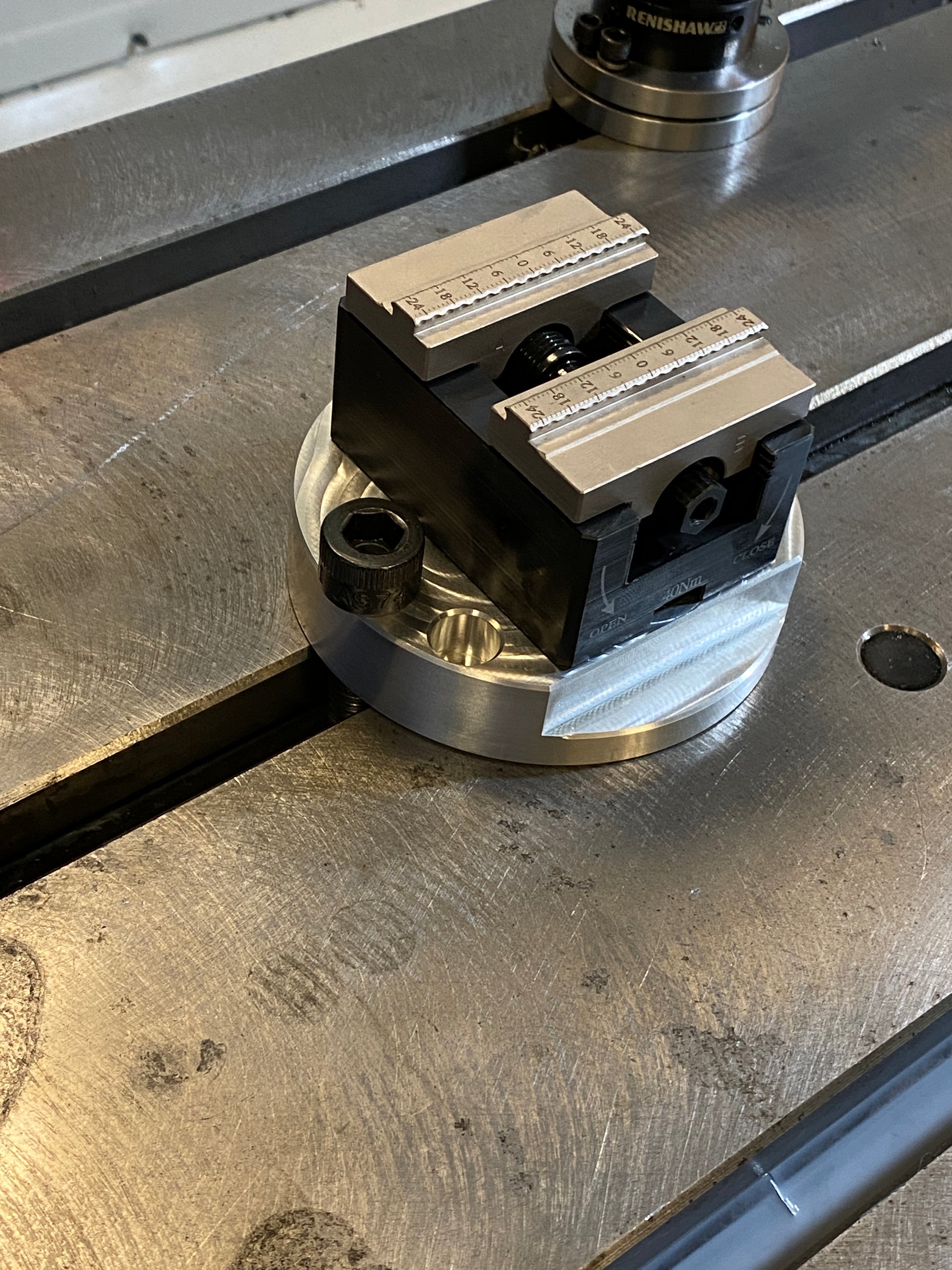

(2) 1/2-13 x 1-3/4" bolts (used to mount the adapter to a CNC T-Slot table to be used traditionally

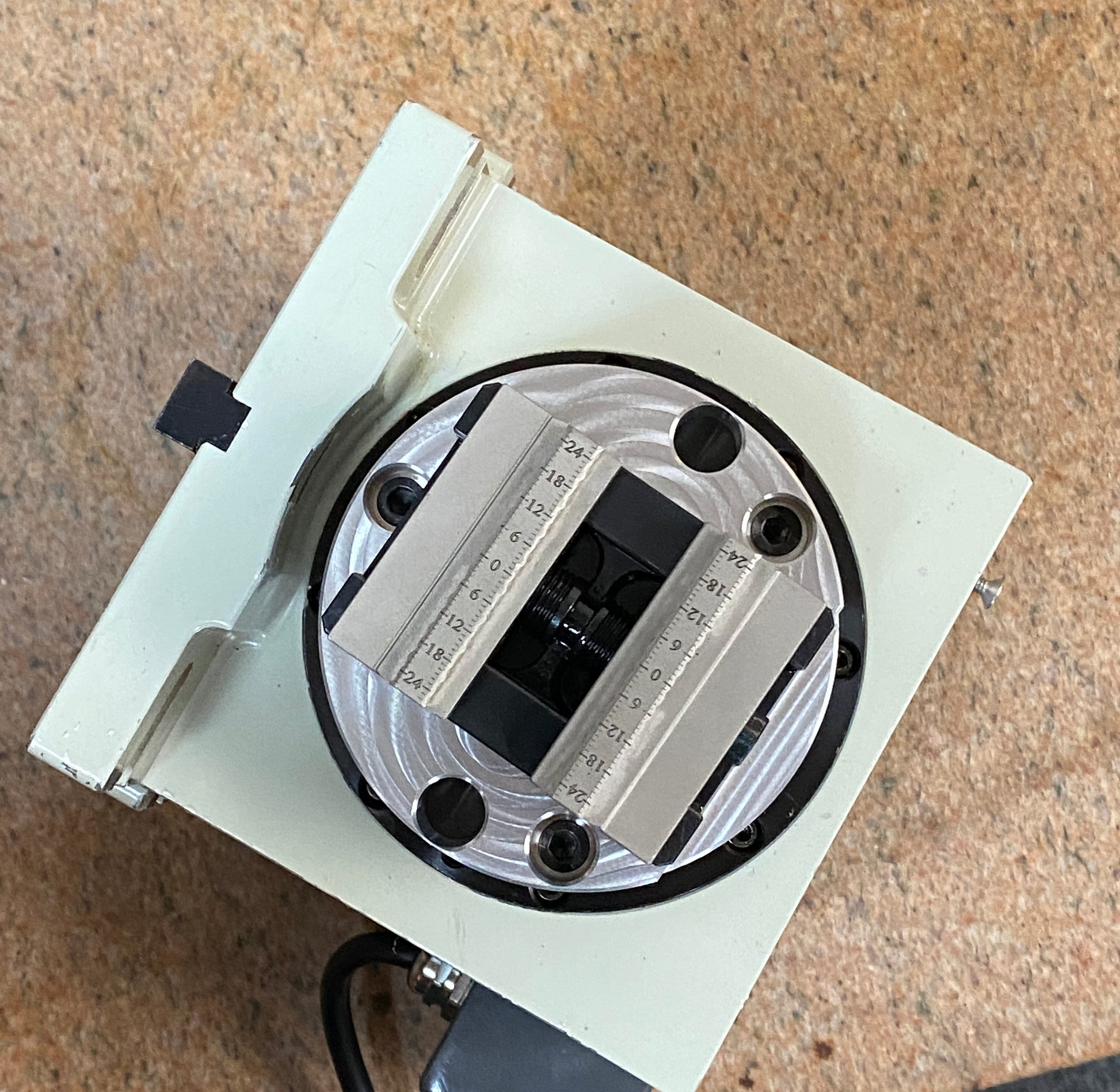

(7) m6 bolts to hold the vise to the adapter and the adapter to the MICRO ARC
